You want to contribute to TibiaWiki by making screenshots?
You need some help to start?
Here you can find some useful anwsers.
Contents |
[edit] Introduction
Before reading this guide you must note that to follow everything literary different kinds of software are used:
- Microsoft Paint (included in windows)
- GIMP (freeware)
The actions in this guide can also be done with Adobe Photoshop. It is not used in this guide because Photoshop is not freeware and GIMP is. Also note that the guide is split into different sections but similar actions are not repeated every time.
[edit] Making NPC/Object/Items images
First find the NPC you want to screenshot and follow the following steps.

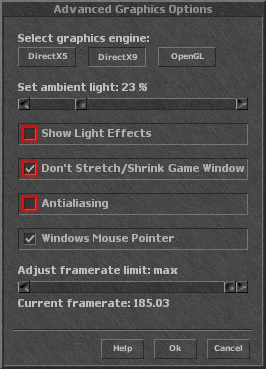

1. Your window size must be from the highest quality, in order to do this go to options
--> graphics
--> advanced
Now check the checkbox which says, Don't Stretch/Shrink Game Window. This changes the size of the screen so that the images are clearer. It may be difficult to look at, but it is necessary.
Also, uncheck the checkbox which says, Show Light Effects. This gets rid of any colored lights, as well as making it easier to tell if there is any shadow or darkness on an object. This may cause black pixels to appear, overlaying the normal graphics. This is in place of darkness (such as night).
Now go back to the game, in most cases your game window has become smaller.
Note the differences between the two:

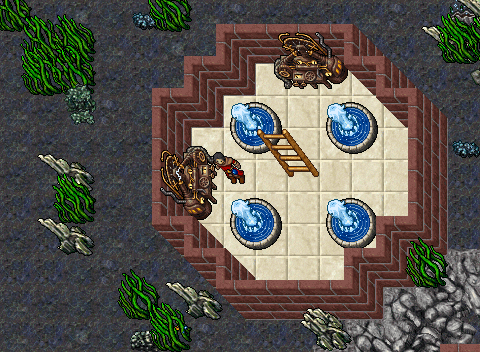

2. In order to have a good screenshot the exposure must be perfect. If your object is above ground always try to wait until it's Tibian Day. During the day, there should be no areas with those black pixels over them.
When taking the screenshot, be sure that the object you are trying to take a picture of is not at all covered by black pixels. If there is not enough natural light (such as underground), try using light spells or light creating items. These are a few light sources that can be useful:
3. Now the circumstances are good you can almost take the screenshot, be aware that if you take a screenshot of a NPC he/she must be facing south, with his face fully visible from the front like this one:
. Also if you make a screenshot of an Object it must be fully visible, no other objects must hang before it. If you can move the object, if it is an Item you better place it on a background which is flush and has a contrast with your item. Example: if you have a dark item you can put it in the desert which is light.
4. Now, take the screenshot by pressing the Print screen key.
5. After pressing on this key it will look like nothing happened, that's because you need to paste your screenshot first. Open a drawprogram like Paint and press
ctrl + v. Your screenshot will now appear in Paint. Press the button to select an area
(marked red in picture) and select a square around the object from which you want to make a screenshot. You can have a bit of background around your object when selecting the square, this is easier and you can always remove it later.

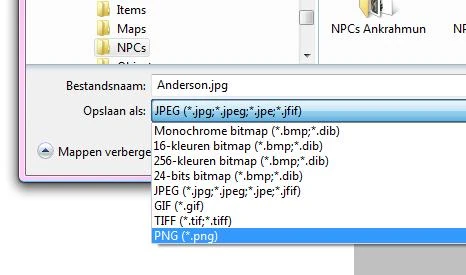

6. Now you press your right-mouse-button on your selected square around your screenshot object. Select the option copy to... and then select the place where you want to save it, e.g. D:\pictures\tibia\screenshots also select the file extension which is probably set default to .bmp or .jpg . It is best to change this to .png because otherwise you might lose image quality.
7. The only thing that remains is clearing the background, if you want to make a good picture you must make the background transparent. In order to do this you must have a program which is not standard included in windows, there are different programs which can do this. I prefer GIMP which can be downloaded here. Simply click on download and you will be redirected to another download page, there you can download it. After downloading you must install it. I won't explain to much about that, if you have specific questions you can always ask it here or on the talkpage of this page.
8. After downloading, start the Gimp and click on file --> open... or simply ctrl + o. Select your screenshot from where you saved it and it will appear in a new window. Set this window to full-screen and zoom in (view --> zoom --> zoom in) as far as possible without having to scroll. So you must be able to still see the whole screenshot at once.
9. Now select Layer --> Transparency --> Add Alphachannel. It will look like nothing happened but this option will cause the background to be transparent when erased instead of the default white when erased.
10. Now press shift + e to select the eraser tool and erase the bigger space around your object. Alternate you can press f(Free Select Tool) and draw a line around your NPC/Object/Item. Then press ctrl + i to invert the selection. Now simply press Del (delete) on your keyboard to remove the background.
Note: you can always ctrl + z infinite, don't be afraid to experiment!

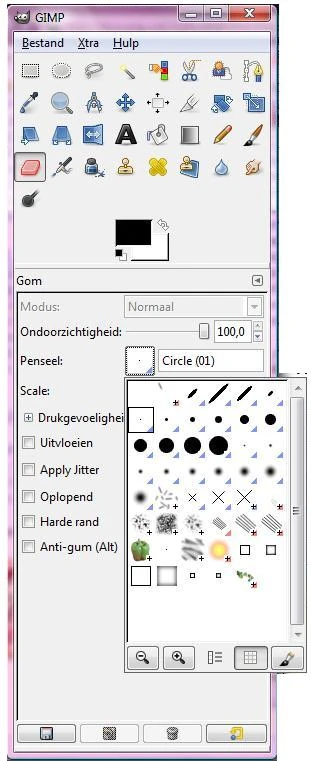

11. When you're ready with this open the first GIMP window again and select Circle (01).
When you do this the eraser will be 1 pixel big so you can erase the details. Go back to your image window and zoom in till 3200%. Now simply erase the background around your object. This can be quite simple because objects in Tibia mostly have a black border around itself, just erase around the black border and it will be ok. Don't worry to much about a pixel being wrong, if you zoom back till 100% you won't see that.
12. After finishing the erase work the picture needs to be resized in the good size. The best thing to do is resize it till 32x32 or 64x64 (or 32x64, 96x96, 128x96 etc). Of course this isn't always possible so don't worry too much about it. In order to resize press the key r (rectangular) and select the area you want to have the new size. The best is to do this when zoomed in 800%. When you have selected the rectangular press the right-mouse-button on your selection and choose Image --> Crop to Selection.
13. Now everything is done it needs to be saved, press ctrl + shift + s (save as) and choose the correct name (beginning with a Capital!) and as extension you choose .gif e.g. Anderson.gif
14. Now it's ready to be uploaded, you did a good job!
[edit] Making animated images
An animated image is a moving image like
. How does it move? Technically is doesn't move, there are just 2 different images which are displayed with 500 ms (0,5 seconds) between them. So how do you make such an animated image? You have to follow the first section and make a screenshot of every frame, for the Behemoth you would have to make 2 screenshots. Then you need to clear the background of both images as described in the first section and save both. Continuing using the GIMP you would put them in the right sequence and save as an animated image.
1. Because this is easier to explain with an example I will use NPC Edala as an example. First of all take the 2 screenshots:
and
Clear the background first roughly:
and
Now it would be easier (but is optional) to save you images as .gif, closing them, and opening them again. This will separate all pixels so you can see them much clearer. Then erase pixel-by-pixel to get this:
and
2. Now we are at the point we finished and things become getting interested. Close your 2 images and open a new one by pressing ctrl + n. In the open menu choose the size, with NPCs you can forget the 32x32 (or multiplications of them) rule and choose the image size of both images, in this case 32x48.
3. Now we need to combine both images to become one, moving one. Press ctrl + alt + o (open image as layer) and choose your first image, Edala1.gif in our case. Do this again for Edala2.gif .
4. Now press PgDn (page down) on your keyboard 3 times (or more, depending on the amount of imported layers) to get on the your first layer, the background one. Then press Layer --> Delete Layer. If you had transparency added to all imported images and you did this step correctly the white background will disappear (because you deleted it) and the transparent grey-blocked background will appear instead.
5. In this example it won't be necessary but it might be in other cases. Every layer must be as big as the image size. E.g. if you had 3 layers of 24x18 and you choose your new image to be 32x32 this action would be necessary. Press Layer --> Layer to imagesize. Press PgUp to go to the next layer and repeat for every layer.
6. Now your image is ready to save. Press ctrl + shift + s (save image as). Choose the image name, Edala.gif in this case and press Save. Now you can choose between some options, choose Save as animation and hit enter (or press export). Now you have to make some settings.
- Delay: Choose 500 milliseconds as delay (in most cases).
- Frame disposal: Choose one frame per layer (replace)
- Use delay entered above for all frames --> check this option.
- Use disposal entered above for all frames --> check this option.
Note: you can also manually change these settings for every layer, if you want the delay to differ from layer to layer. For most tibia animations this is not needed though.
[edit] Making House/Guildhall images
...
[edit] Making Map images
To get the best result into making map images it is not recommended to take screenshots from the minimap in your client. It is advised to download one of the available tibia map viewers, which combines all your map files in one big files which makes it easier to view and make screenshots. The one recommended can be downloaded here, only note that TibiaWiki can not guarantee it's safety.
1 After downloading the map viewer just go to the floor you want to make a map image of, zoom in correctly and click on Prt Sc.
2 Now open Paint or a similar program and paste (ctrl + v) your printed screen. Select the part you want to use and click on cut to selection or something like that.
3 You can cut out non-relevant parts of the screenshot until only the needed map remains. Adding the exact floor as text or (if it is a route) a line with the path can be useful.
4 Now comes the most important part, save your image in .png format NOT in .jpg, which will reduce the quality unneeded. Also use lowercased preferably.
5 Now it is ready to upload to tibiawiki. Remember to not only upload it, but also link it on the required page, because unused pictures will be deleted (since they have no purpose).
